Features
- High-performance Cortex A8 1GHz processor, Linux system.
- Support LoRaWAN protocol Class A, support ultra-low-power SenseCAP Sensor
- Support 8 RX, 1 TX transceiver, maximum transmit power 27dBm
- Support multiple ISM bands: CN470, EU868, US915
- Support multiple methods to access the network: 4G, Ethernet
- Ultra-wide-distance transmission: 10km in line of sight scene, 2 km in the urban scene
- Industrial grade protection: IP66 enclosure, temperature -40℃~70℃, suitable for outdoor applications

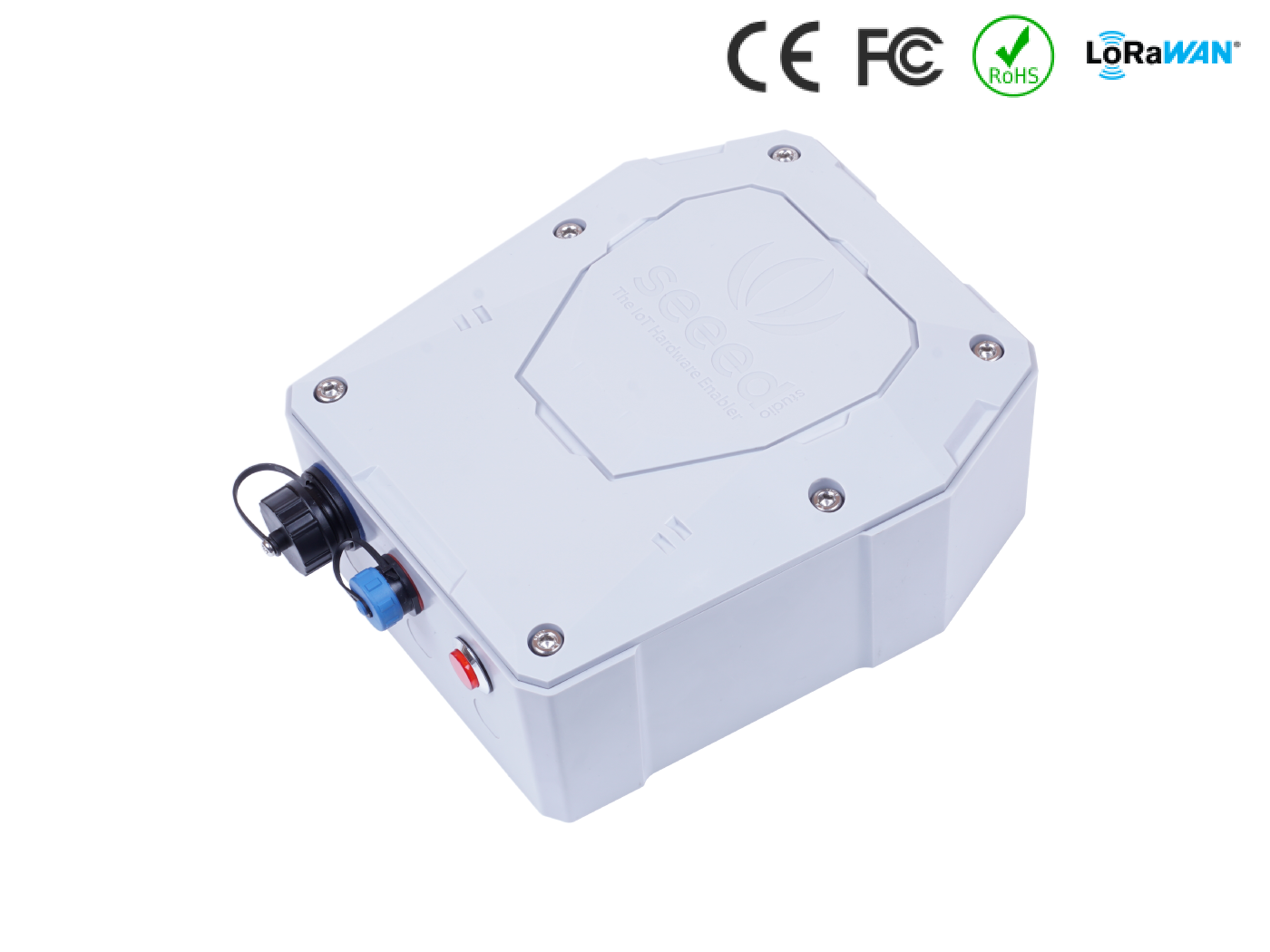

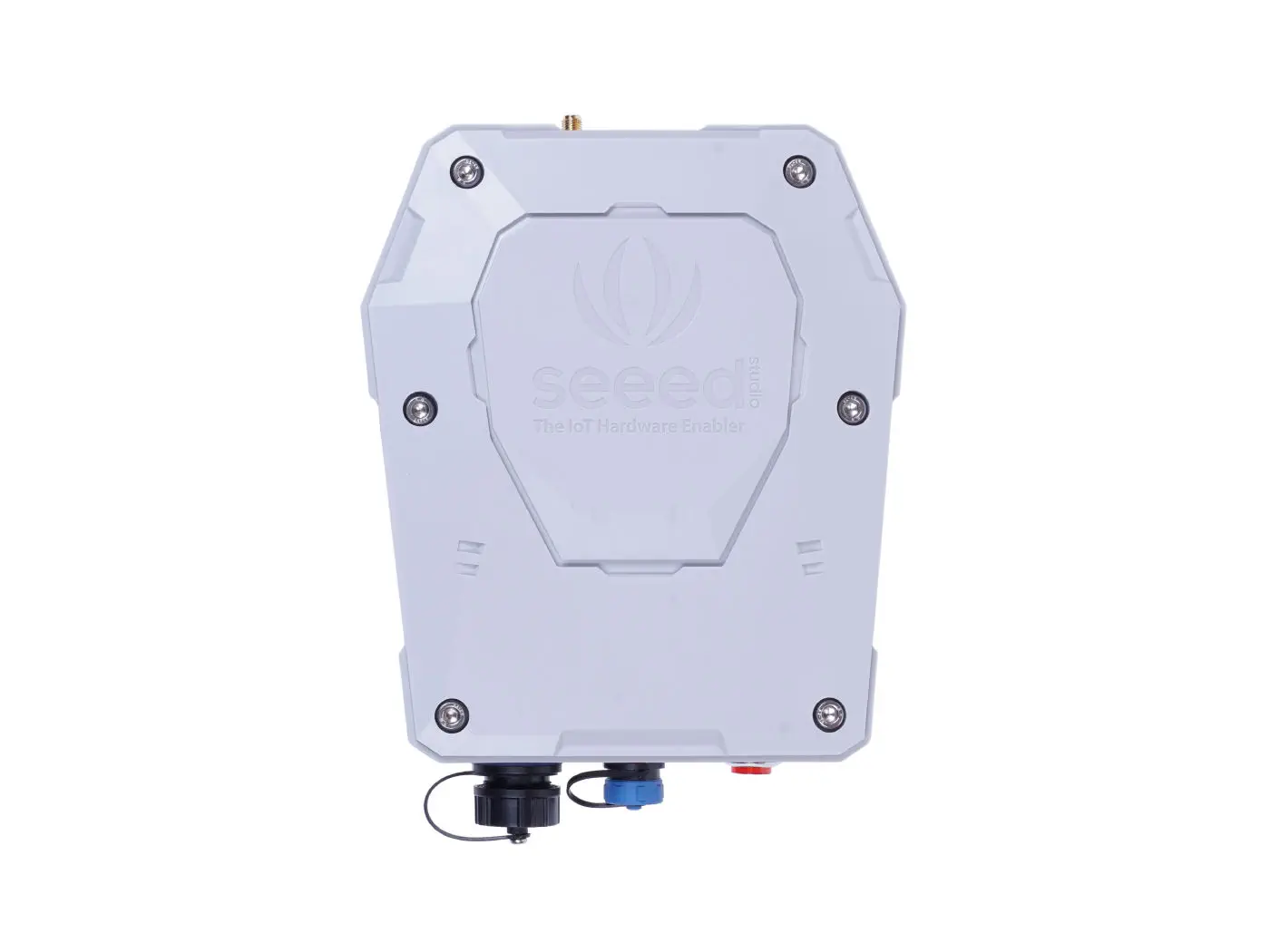

SenseCAP Gateway – LoRaWAN is based on Long Range Application protocol, applicable for low-power consumption, long-range environmental data collection, and remote monitoring scenarios such as smart agriculture and smart city.
Please be aware that this product does not support the Helium LongFi network.
As the central device of SenseCAP LoRaWAN network, the gateway is used for collecting data from different SenseCAP Sensors and transmit the data to the cloud platform via cellular LTE or Ethernet. Equipped with a high-performance processor AM3358 and telecom-operator-level Long Range chip SX1301, this device ensures robustness and high performance in large-scale networks. Mutual authentication and encryption are established in the whole network to increase security.
The device can also connect to third-party LoRa networks such as TTN, or expose a private one
The gateway is designed with an IP66 enclosure and supports an extended operating temperature range, making it suitable for industrial applications in both indoor and outdoor severe environments.
Applications
- Smart Agriculture
- Smart City
- Smart Buildings
- Smart Industry
- Environmental Monitoring
- Other wireless Sensing Applications
More info? Supplier’s Documents’ Center
